HYBRID POLYMER VACUUM TUBING
Information: HYBRID POLYMER SINGLE VACUUM TUBING (SVT)
HYBRID POLYMER TWIN VACUUM TUBING (TVT)
HYBRID POLYMER SINGLE VACUUM TUBING (SVT)
HYBRID POLYMER TWIN VACUUM TUBING (TVT)

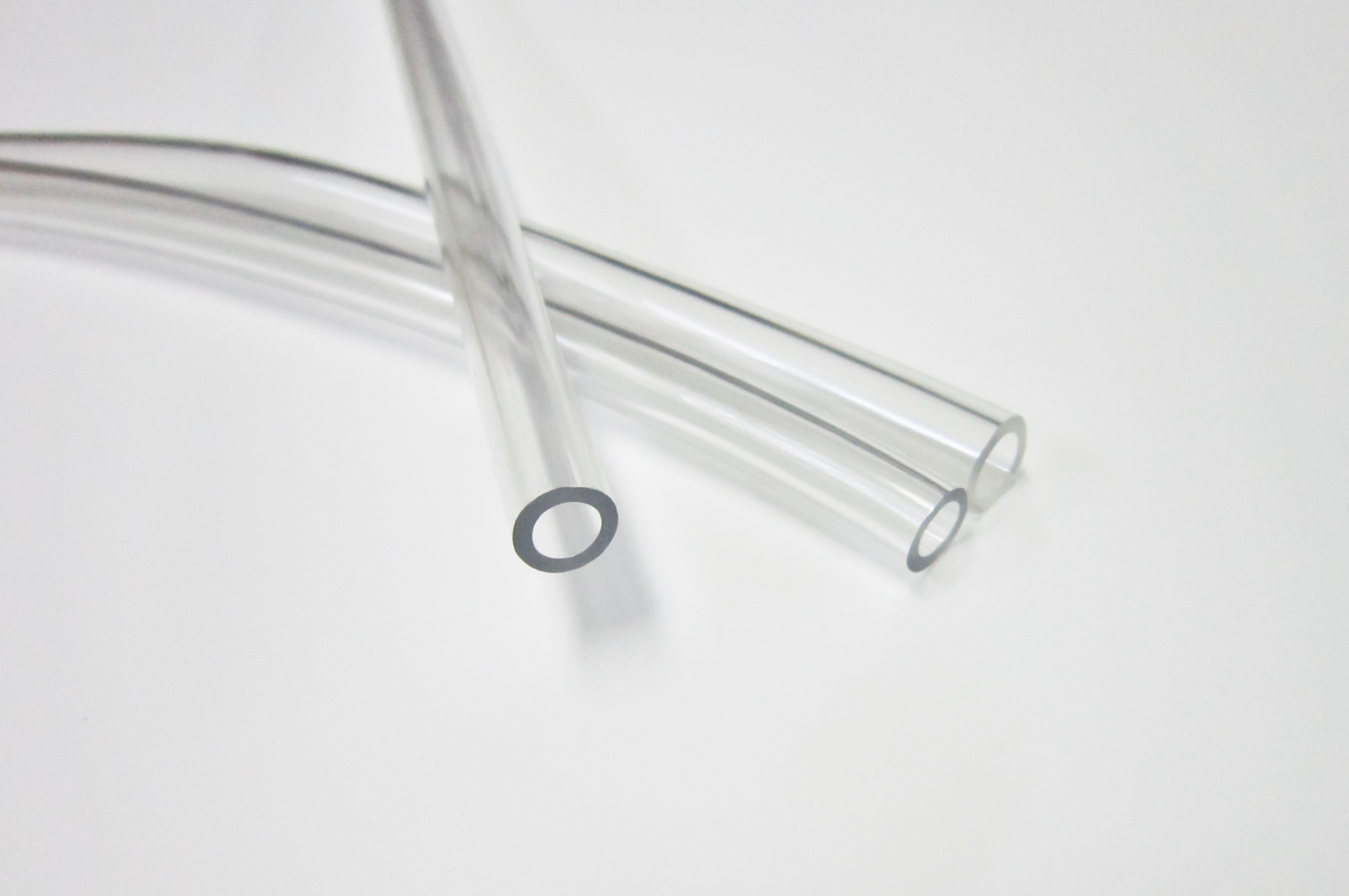

Our Hybrid Polymer Vacuum Tubing optimize operation by maintaining durability and flexibility under a variety of environmental conditions. These materials are durable, contain an antibacterial formula and retain their performance through excellent chemical resistance. Maintain flexibility at extreme temperatures. It is lightweight, resistant to oxidative flaking, cracking and aging. Our products are strong and flexible, ensuring that our tubing does not harden, swell or deform.

Make : Hybrid Polymer
Color : Clear or translucent or colored
Toxicity : FDA, NSF 372 certified
Temperature Range : 30℃ to 70℃ / 22ºF to 160ºF
Packaging Options : Custom packaging available upon request
Certification : European Directive Reg. (EU) 10 2011 for B C D 2 Simulants, REACH, ROHS, PAHS


Hybrid Polymer Vacuum Tubings are available in two configurations:
  • Single Vacuum Tubing
  • Twin Vacuum Tubing

Item No.
Single / Twin
I.D.
( inch ) / (mm)
Wall
( inch ) / (mm)
Working
Pressure
( psi / 70゚F )
Length
( ft )
SVT014000 / TVT014000 1/4 , 6.35 1/8, 3.175 55psi, 3.8bar  50, 100
SVT932000 / TVT932000 9/32, 7.14 1/8, 3.175 55psi, 3.8bar 50, 100
SVT038000 / TVT038000 3/8, 9.53 1/8, 3.175 55psi, 3.8bar 50, 100
