乳類輸送管
商品說明: tFLEX MILK TUBING

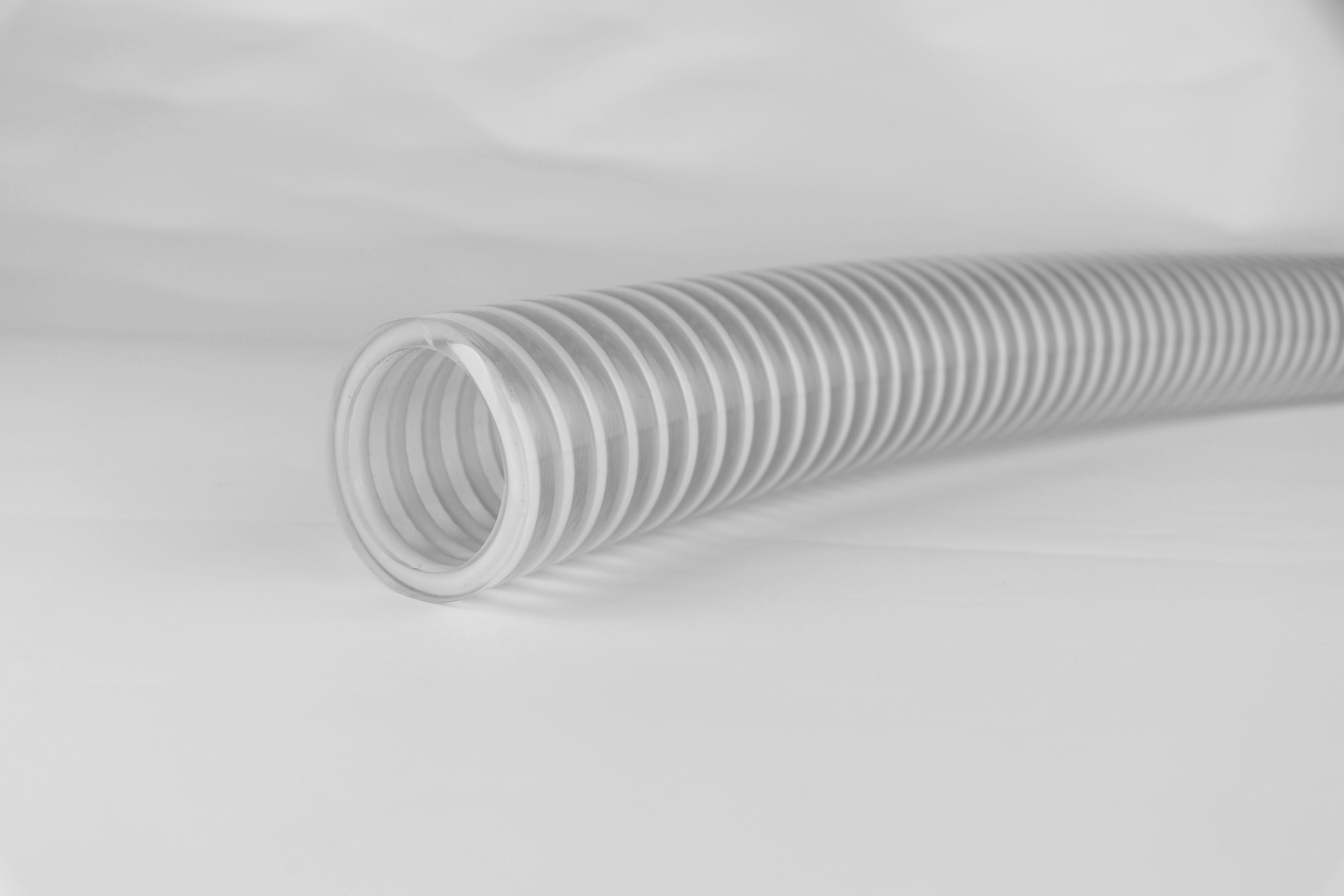

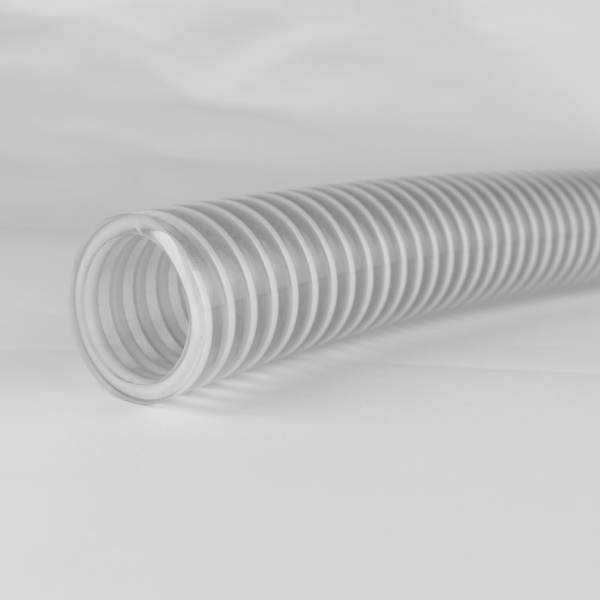

tFLEX MILK TUBING

Our tFlex Milk Tubing contains phthalate free and antibacterial formulations for delivering liquid foods containing 20 degrees alcohol, milk, juice and beverages. The non toxic, smooth and abrasion resistant interior enable the grinding media to perform at a high delivery rates while maintaining a long service life. The clear wall allows for good visibility in the case of visual inspection, flexible plastic PVC hose, built in reinforced white plastic spiral, rigid anti PVC shockproof, sturdy, flexible and impact resistant.

Make : Flexible PVC reinforced with rigid PVC helix integrated in the wall; low temperature soft PVC
Toxicity : FDA, NSF372 certified
Temperature Range : 25℃ to 70℃ / 13 ºF to 160ºF
Packaging Options : Custom packaging available upon request
Certification : European Directive Reg. (EU) 10/2011 for B C D2 Simulants, REACH, ROHS, PAHS

Item No.
I.D.
( inch ) / (mm)
Wall
( inch ) / (mm)
Working
Pressure
( psi / 70゚F )
Length
( ft )
TMT112000 1-1/2, 38 3/16, 4.76 130psi, 9bar 25, 50, 75
TMT002000 2, 50 3/16, 4.76 115psi, 8bar 25, 50, 75
TMT003000
3, 76 1/4, 6.35 90psi, 6bar 25, 50, 75
TMT004000
4, 102 1/4, 6.35 60psi, 4bar 25, 50, 75
