SPA FLEX
商品說明: SPA FLEX

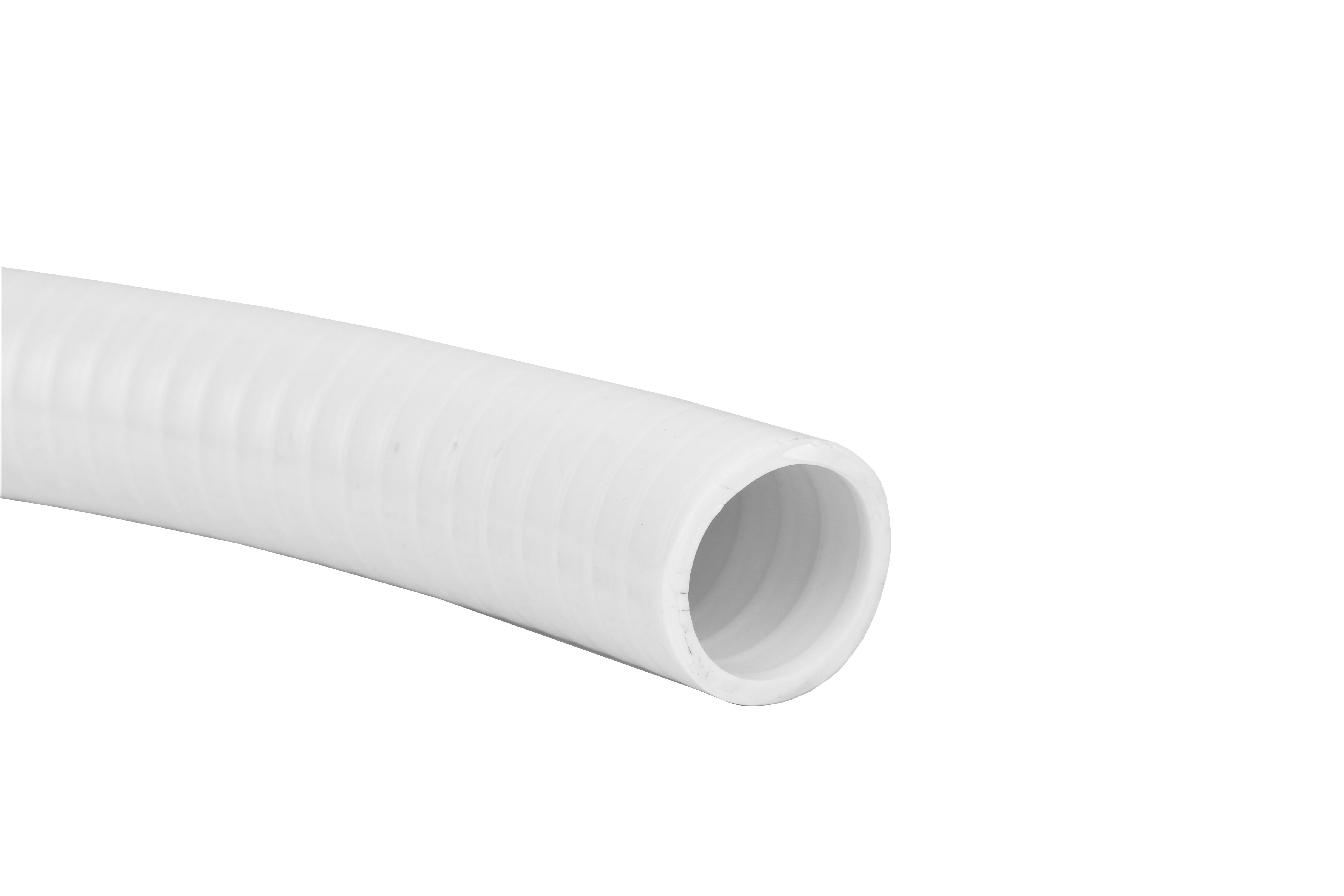

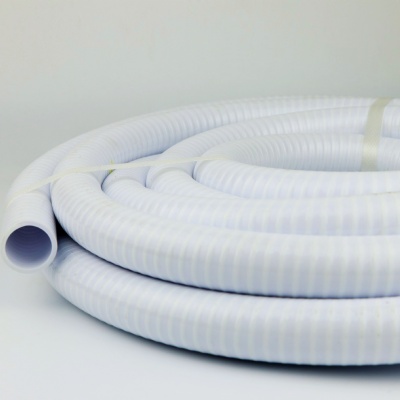

SPA FLEX

Manufactured for transfer and suction of liquids in Jacuzzi, whirlpools, jetted tubs and pool systems. Rugged yet bendable construction designed to replace traditional rigid PVC pipes in hard to install jobs with multiple bends and corners, allowing savings on fittings and installation time and cost. Compatible with standard schedule 40 fittings for maximum design flexibility and easy replacement.

Make: Flexible PVC reinforced with rigid PVC helix
Color: White, Green
Toxicity: Non-toxic
Temperature Range: -10°C ~ 60°C / 14°F ~ 140°F
Standard Length: 25ft, 50ft, 75ft / 10m, 15m, 23m
Packaging Options: Bulk

Item No.
Nominal
Size
(in)
O.D.
Working Pressure
(@21°C / 70°F)
(bar) (psi)
Burst Pressure
(@21°C / 70°F)
(bar) (psi)
Bend Radius
(in)
SPA0750xxx 3/4 1.050 7 / 100 27 / 400 2
SPA1000xxx 1 1.315 7 / 100 24 / 350 3
SPA1250xxx 1-1/4 1.660 5.5 / 80 17 / 250 4
SPA1500xxx 1-1/2 1.900 4.5 / 65 14 / 200 5
SPA2000xxx 2 2.375 4 / 60 12 / 175 6





Item No.
Nominal
Size
(mm)
O.D.
Working Pressure
(@21°C / 70°F)
(bar) (psi)
Burst Pressure
(@21°C / 70°F)
(bar) (psi)
Bend Radius
(mm)
SPA020xxx 20 21.1 7 / 100 27 / 390 80
SPA025xxx 25 25.1 7 / 100 24 / 350 100
SPA032xxx 32 32.4 6 / 99 18 / 260  128
SPA040xxx 40 40.7 5 / 75 15 / 220 160
SPA050xxx 50 50.6 4 / 60 12 / 175 200
