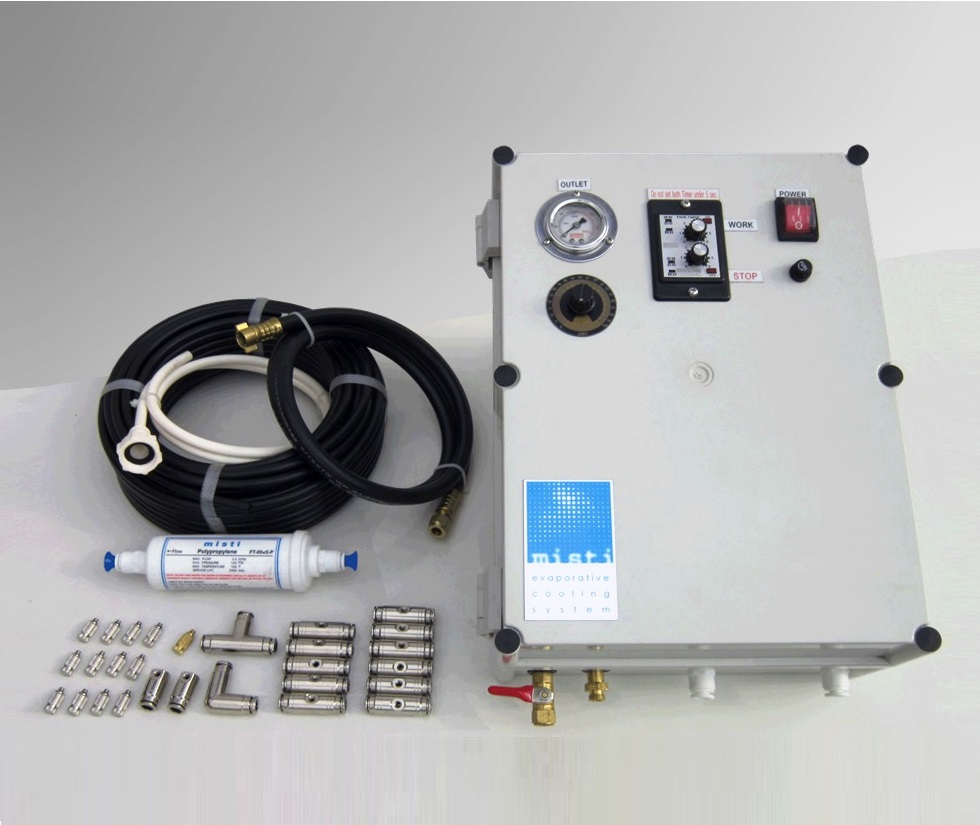

HP38012ST (V) - Parts list
1 Mini high pressure pump HPP-02M1C (V)
1 Water supply hose - O.D.3/8" x 1.5M & 1.5M PE tube
1 Rubber outlet high pressure hose
25M O.D.3/8" PE tube misting line 1000PSI W.P
12 Slip lock brass connectors single hole
12 Anti drip nozzles
1 Slip lock brass connector elbow
1 Slip lock brass connector tee
2 Slip lock brass connectors end
1 Auto brass drain valve
1 Filter
44 Mounting clamps

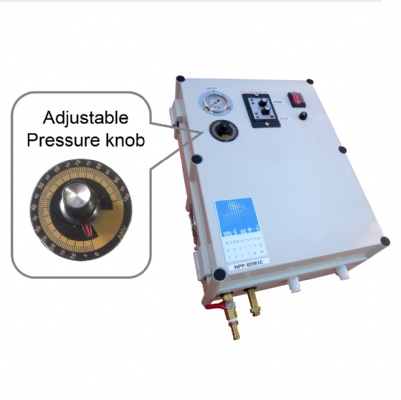

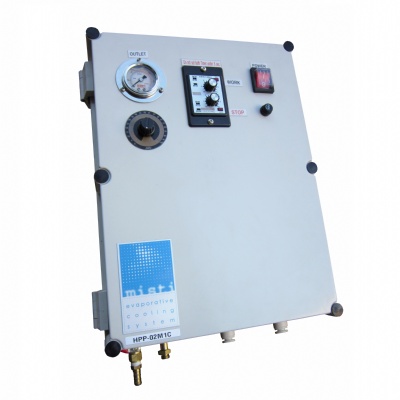

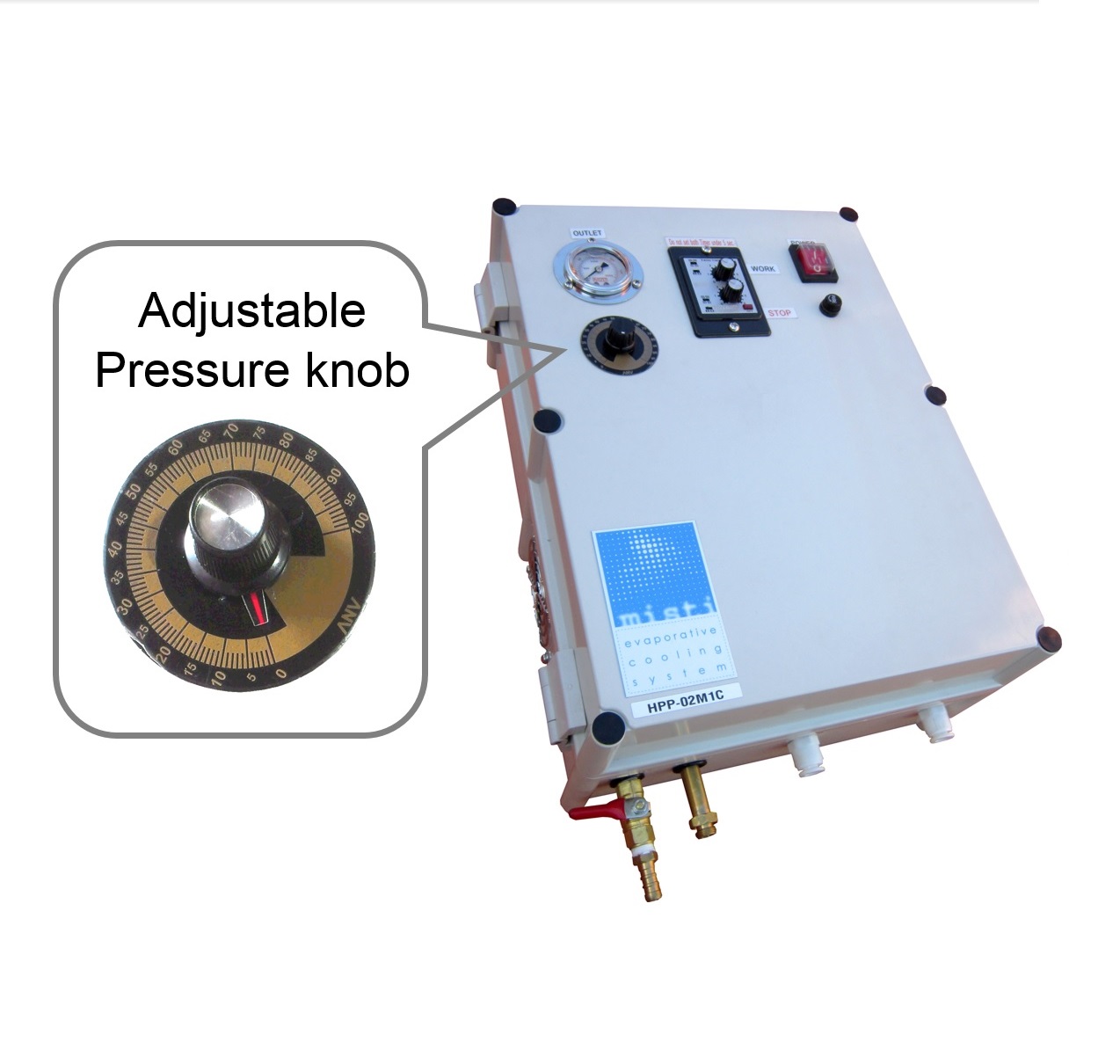

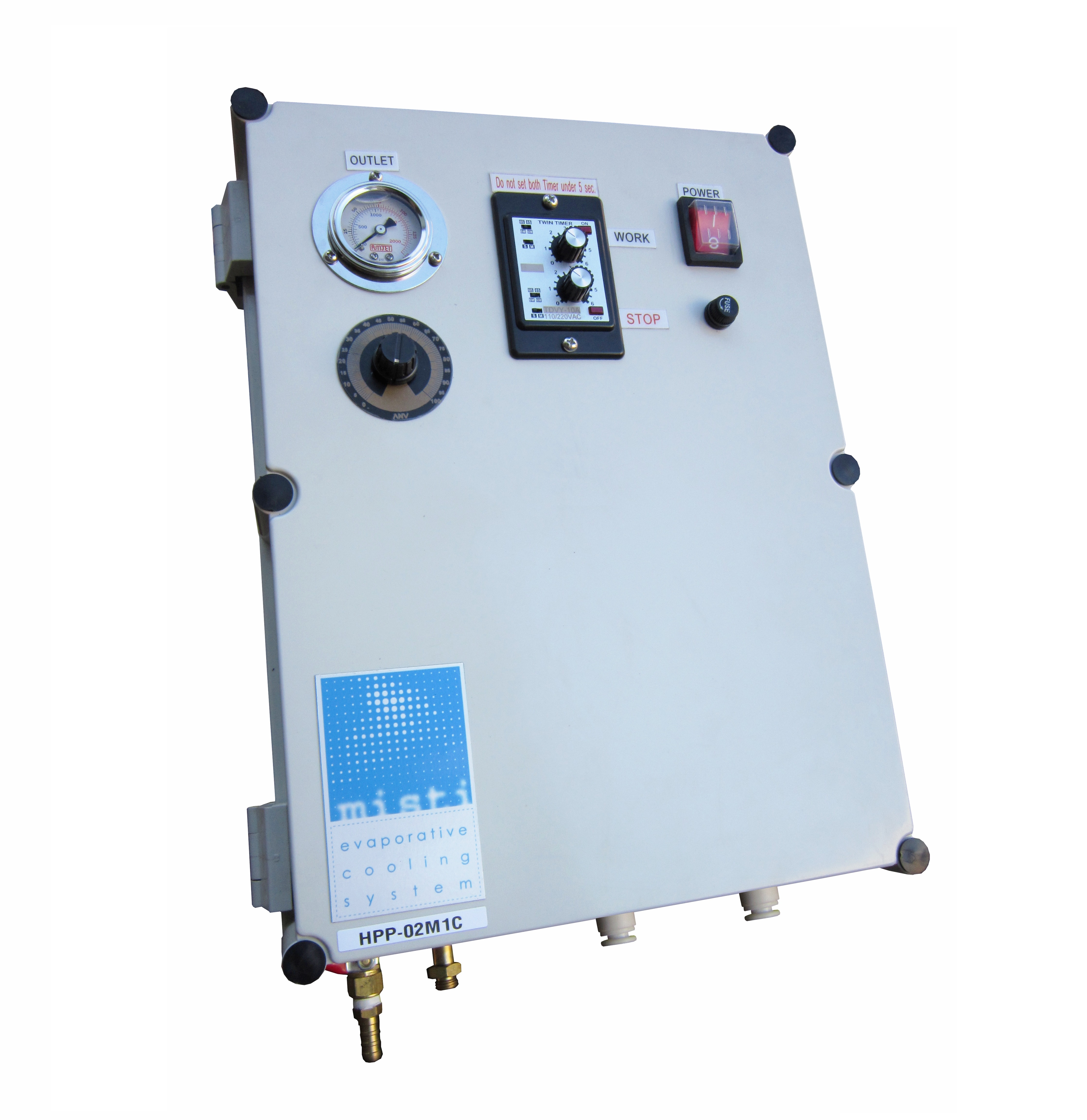

HPP-02M1C (V) - Pump Technical Features
Working Pressure : 800~1000 PSI
Flow Rate (Max) : 0.7 LPM
Voltage : 100~120 / 200~240V
AMP : 1.4 / 0.7 A
Current : 50 / 60 Hz
Power : 1/5 HP
Speed (Max) : 2200RPM
Nozzle Quantity : 5~12 PCS (0.2mm)
